SLATE S

slate_s1010W3000KON-OFF7IE20110-2213-01
SLATE S slate_s10

About this product

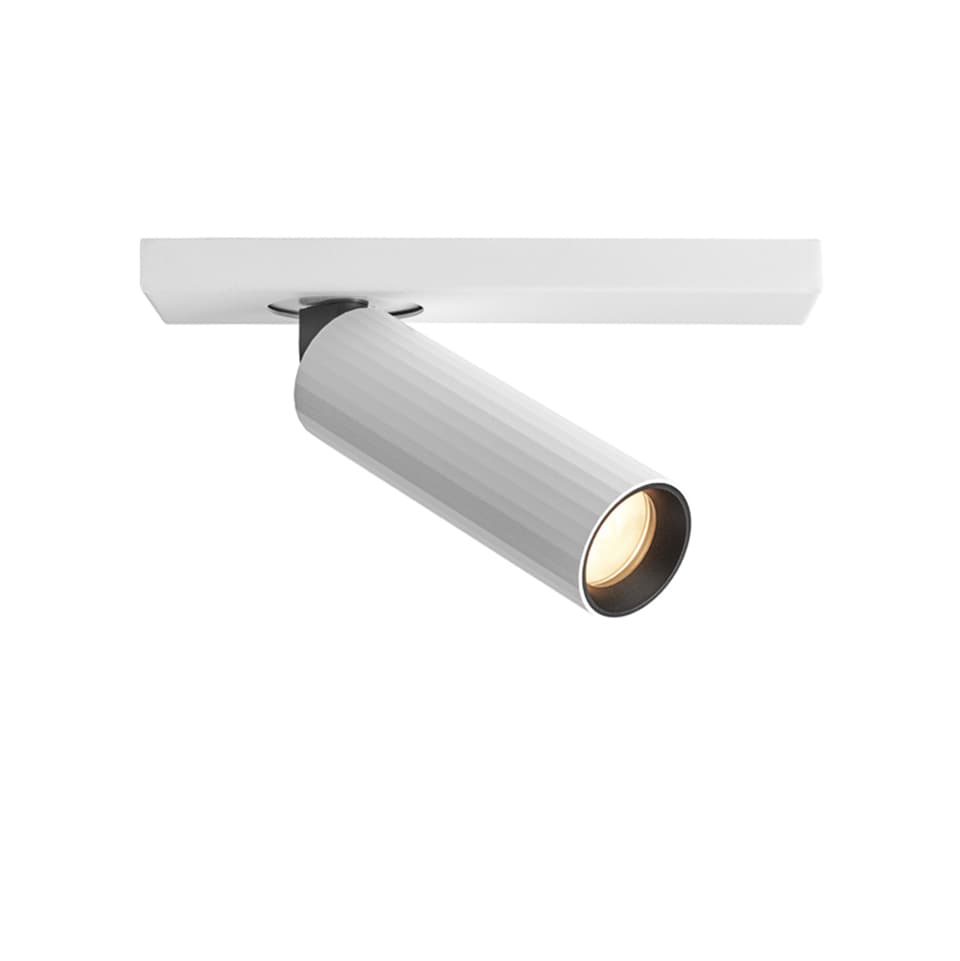

Slate S is a surface luminaire available in single or double version with a power of 10W and 20W respectively. Its elongated and minimalist shape brings a dose of design and elegance to installations. This is a projector that can be installed both in the ceiling and in the wall, and its wide variety of finishes, adjustment options, degrees of opening, etc. make it a special luminaire for hotel, residential or commercial installations.

Product Configuration

Select your preferred configuration from available options

7IE20110-2213-01
Power10W
ControlON-OFF
Color Temp3000K
System Output594-693 lm
Beam Angle°
ColorBlack
7IE20110-2213-90
Power10W
ControlON-OFF
Color Temp3000K
System Output594-693 lm
Beam Angle°
ColorTechnical White
7IE20110-2214-01
Power10W
ControlON-OFF
Color Temp4000K
System Output609-710 lm
Beam Angle°
ColorBlack
7IE20110-2214-90
Power10W
ControlON-OFF
Color Temp4000K
System Output609-710 lm
Beam Angle°
ColorTechnical White

Selected Configuration

Reference:
7IE20110-2213-01
Power:
10W
Output:
594-693 lm
Control:
ON-OFF
Color:
Black

Simple ON/OFF control, can be programmed with KNX systems

Technical Specifications

Aluminium
Material
Technical White, Black
Colours
10W
Power
3000, 4000
Color Temperature
1197, 1269
Luminous Flux
Zoom (15-38)
Beam Angle
20
IP Rating
COB
LED Type
35000 hours
Lifespan
> 90
CRI
123, 131
Efficiency
Ø45 x 213x65 x 162
Dimensions
